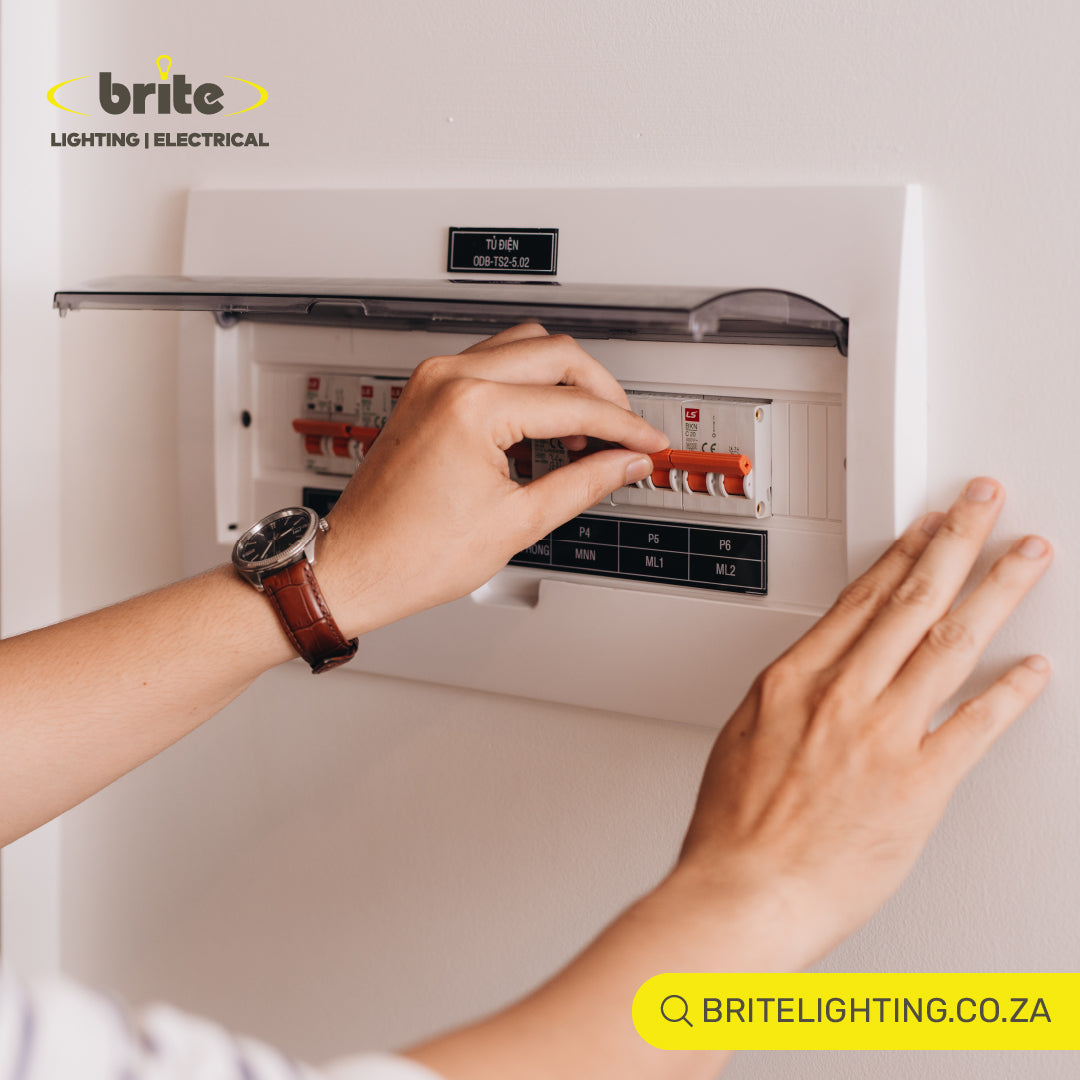

Choosing the Right Circuit Breaker for Your Electrical Needs

Safeguarding your home or business's electrical system by choosing the right circuit breaker is essential. These components protect your electrical system from overloads and short circuits, preventing potential hazards such as fires or equipment damage.

In this guide, we'll explore the different types of circuit breakers, their applications, and how to select the right one for your needs.

What Are Circuit Breakers?

They are safety devices designed to protect an electrical circuit from damage caused by excess current from an overload or short circuit. Unlike fuses, which must be replaced after they operate, circuit breakers can be reset (either manually or automatically) to resume normal operation. Their primary function is to interrupt the flow of electricity when a fault is detected, ensuring that the wiring and connected devices are not damaged or do not pose a fire risk.

They are essential in both residential and commercial settings, providing reliable protection and enhancing the overall safety of an electrical system. They are a key component in modern electrical installations, allowing for quick response to electrical issues without the need for ongoing maintenance or replacement, as is the case with traditional fuses.

How Does a Circuit Breaker Work?

A circuit breaker is an automatic safety device designed to interrupt the flow of electricity in a circuit when it detects an overload or short circuit. When the electrical current exceeds the breaker's rated capacity, the internal mechanism trips, breaking the circuit and stopping the flow of electricity. This action prevents wires from overheating and reduces the risk of fire or damage to connected devices. Once the issue is resolved, it can be reset to restore power.

Understanding Circuit Breaker Amperage

• Low Amperage (6A-20A): These are often used in lighting circuits and low-power devices.
• Medium Amperage (20A-50A): These are commonly found in circuits for household appliances such as ovens, dryers, and water heaters.
• High Amperage (50A-125A): High-power devices and industrial equipment require these breakers to handle the significant electrical load.

Choosing the correct amperage is crucial. Installing a breaker with too low an amperage can cause frequent tripping, while a breaker with too high an amperage may fail to protect your circuit adequately.

Din Rail & Samite Circuit Breakers

In South Africa, the two main types of circuit breakers are Din Rail and Samite:

• Din Rail Circuit Breakers: These are the most common in modern electrical installations. They are designed to be mounted on a standard Din Rail, which is a metal rail used to support and secure various electrical devices. Din Rail breakers are known for their robustness and ease of installation.

• Samite Circuit Breakers: These are older types, often found in older buildings. Samite breakers are mounted on a specific type of rail that is narrower than the Din Rail. While still in use, Samite breakers are becoming less common as they are gradually being replaced by Din Rail systems in newer installations.

White vs. Black Circuit Breakers

One interesting distinction in circuit breakers is the colour difference between those used in South Africa and those used elsewhere:

• Black Circuit Breakers: In South Africa, circuit breakers are typically black. The black colour is a standard in the country and is prevalent across various installations.
• White Circuit Breakers: In other parts of the world like Europe and North America, circuit breakers are usually white. The white colour is often associated with newer installations and is seen as a modern standard in those regions.

While the colour does not affect the functionality, it can be an indicator of regional standards and practices in electrical installations.

Different Sizes of Circuit Breakers

They also come in different sizes, which can impact their installation and use:

• Samite Circuit Breakers: These breakers are generally thinner than Din Rail breakers. Their compact size makes them suitable for installations where space is limited, but they may require specific mounting rails, limiting their compatibility with modern systems.
• Din Rail Circuit Breakers: These breakers are thicker and more robust, offering better durability and ease of installation on standard Din Rails. They are often preferred in new installations because of their compatibility with a wide range of electrical devices and systems.

Differences in Circuit Breaker Clips

The method by which they are secured in place varies between different types:

• Samite Circuit Breakers: These typically have smaller, narrower clips that secure them to their specific mounting rails. This design can make them less versatile, as they are generally incompatible with the more modern Din Rail systems.
• Din Rail Circuit Breakers: These breakers have larger, standardised clips that easily snap onto the Din Rail. This makes them highly versatile and easier to install or replace, contributing to their widespread use in modern electrical installations.

Factors to Consider When Choosing a Circuit Breaker

1. Electrical Load

Determine the total electrical load of the circuit. This includes the sum of all electrical devices and appliances that will be connected to the circuit. Make sure to choose a breaker that can handle the maximum load without tripping.

For example, if your circuit has a total load of 20 amps, you should select a breaker rated at least 25 amps.

2. Voltage Rating

Ensure that the voltage rating of the circuit breaker matches the voltage of the electrical system. Standard ratings are 110V/240V for residential systems and up to 480V for commercial and industrial systems.

3. Current Rating (Amperage)

The current rating of the circuit breaker should match the current carrying capacity of the circuit's wiring. Common ratings for residential use are 15A, 20A, and 30A, while higher ratings are used in commercial and industrial settings.

4. Trip Curve

The trip curve of a circuit breaker describes how quickly it will trip in response to different levels of overcurrent. Choose a trip curve that matches the type of load you have. For example, Type B breakers are suitable for residential use, while Type C and D are better for commercial and industrial applications with inductive loads.

5. Compatibility with Panel

Ensure that the circuit breaker is compatible with your electrical panel. This includes checking the brand and model of your panel to find breakers that are approved for use with it.

6. Safety Certifications

Look for circuit breakers that meet safety standards and certifications, such as those from Underwriters Laboratories (UL) or the International Electrotechnical Commission (IEC).

Brite Lighting & Electrical Circuit Breaker Offerings

At Brite Lighting & Electrical, we offer a comprehensive range of circuit breakers and accessories to meet the diverse needs of our customers. Our selection includes both Din Rail and Samite, available in various amperages to suit different applications, whether for residential, commercial, or industrial use.

We stock high-quality products from reputable brands, ensuring that you get reliable and durable solutions for your electrical system. Our circuit breakers are available in different amperages, including the Samite (Black) Breakers commonly used in South Africa. We also offer a variety of accessories to complement your installation, ensuring a seamless and efficient setup.

Whether you're looking to upgrade your existing electrical system or need a solution for a new project, our knowledgeable team is here to assist you in finding the right circuit breaker for your specific requirements.

Conclusion

Choosing the right circuit breaker for your electrical needs involves considering various factors, including amperage, size, type, and even colour. Whether you're working on a new installation or upgrading an older system, understanding these differences can help you make an informed decision that ensures the safety and efficiency of your electrical system.
