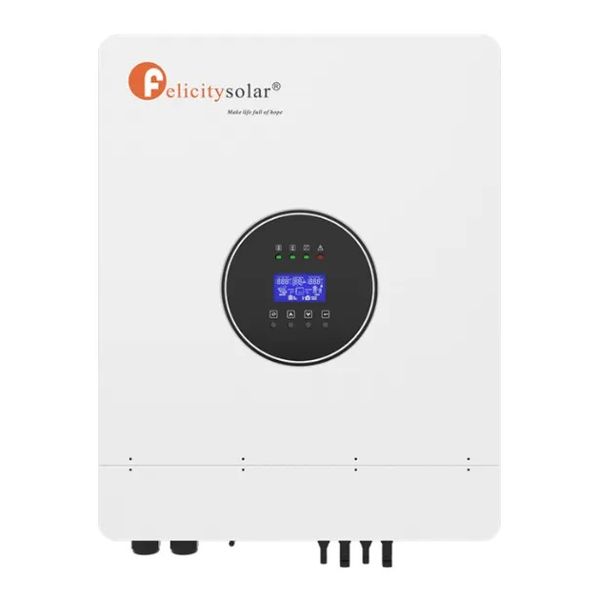

Felicity Inverter 6KW 48A MPPT IVEM6048

Features:
Parallel connection quantity up to 12 units for 6KVA model (Battery must be connected)
Configurable battery charging current based on applications via LCD setting.
Configurable AC/Solar Charger priority via LCD setting.
Compatible to mains voltage or generator power.
Built-in MPPT solar charge controller.
Lithium battery activation function.
Auto restart while AC is recovering.
Inverter running without battery.
Pure sine wave inverter.
Cold start function.

Model
IVEM6048

Line Mode Specifications:
Rated Output Power(VA)
6000VA
Rated Output Power(W)
6000W
Nominal DC Input Voltage
48V
Nominal Input Voltage
230Vac
Max. AC Input Voltage
280Vac
Nominal Input Frequency
50Hz/ 60Hz (Auto detection)
Efficiency(Line Mode)
95 percent (Rated R load; battery full charged)
Pass Through Without Battery
Yes
Utility Charge Mode Specifications
Input Voltage Range
230Vac
Over Charge Protection
Yes
Inverter Mode Specifications
Output Voltage Waveform
Pure sine wave
Nominal Output Voltage
230Vac 5 percent
Nominal Output Frequency(Hz)
50-0.3Hz/60Hz-0.3Hz(Adjustable)
Parallel capability
Yes; up to 12 units
Peak Efficiency
93 percent
General Specifications
Operating Temperature
0 degrees-55 degrees
Range Storage Temperature
-15C-60 degrees
Net Weight(KG)
11.5KG
Product Dimension(MM)
420x335x142MM
Package Dimension(MM)
512x417x216MM
